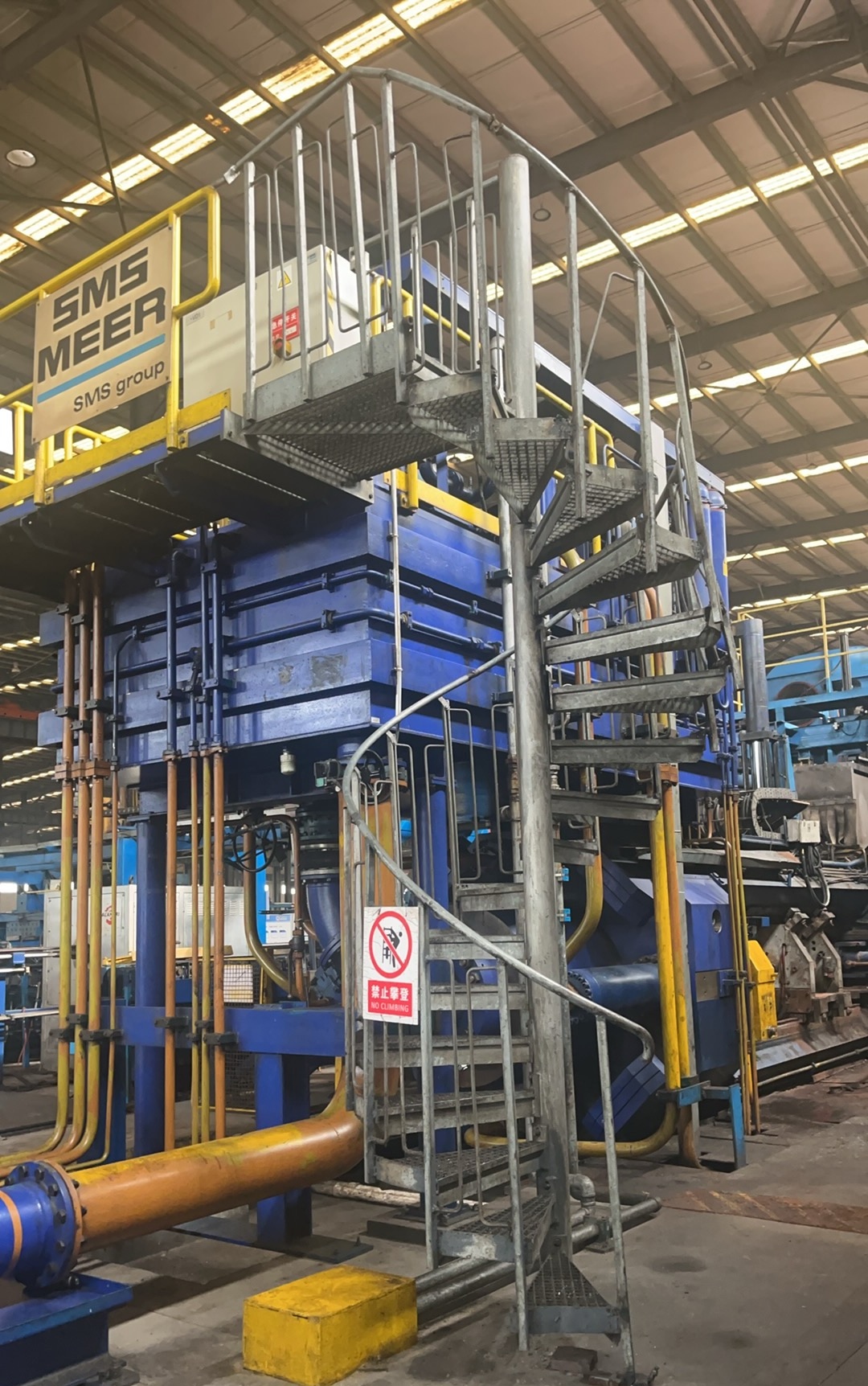

Working principle and structure of aluminum extrusion machine
Aluminum profile extruder is used to extrude various shapes of aluminum products. The working principle of aluminum profile extruder is to apply external force to the metal billet placed in the container (extrusion cylinder), causing it to flow out from a specific mold hole and obtain the desired cross-sectional shape and size. It is a plastic processing method
The aluminum extrusion machine is mainly composed of three parts: mechanical part, hydraulic part, and electrical part. The mechanical part includes the base, guide column, front crossbeam plate, rear crossbeam plate, insulation seat, scissor seat, mold seat, upper and lower guide rail plates, mechanical arm ingot feeding device, extrusion rod seat, extrusion rod and other components. The hydraulic system consists of a master cylinder, a secondary cylinder, a locking cylinder, a mold seat cylinder, a plunger pump, a vane pump, a valve plate, valves, oil pipes, oil tanks, and various hydraulic switches. The electrical part mainly consists of a power supply cabinet, an operation console, a PLC programmable controller, an AC contactor, a display screen, etc
